About This Product

Get quiet, efficient cleaning power with this 24-inch Viking premier custom panel dishwasher. The adjustable upper rack offers three configurations for fitting tall items, while the smart FullSize rack lets this machine easily accommodate large utensils. This Viking premier custom panel dishwasher cleans every dish thoroughly with a multilevel power washing system.

Features

Unique Turbo Fan Dry

Circulates air for efficient drying performance.

Three Position Adjustable Upper Rack

Allows for loading of taller glasses in upper rack or larger pans in bottom rack.

Multi-Level Power Wash

Variable pressure and three wash arms ensure every dish is clean.

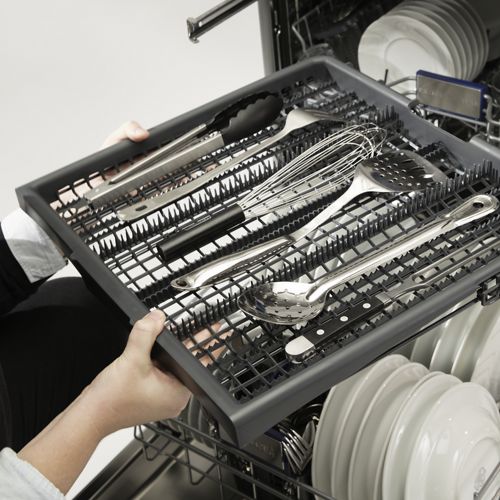

Exclusive Smart FullSize™ Rack

Accommodates large cutlery and utensils.

Quiet Clean™ Performance - 42dB

Three layers of insulation – bitumen, cotton and full side walls create one of the quietest dishwashers on the market.

LCD Control Panel

Allows for easy viewing of cycle/option selection and remaining wash time.

Details

MULTI-LEVEL WASHING

• Variable pressure wash adjusts water volume, pressure, and temperature according to load size and soil levels
• Multi-level washing with stainless steel bottom spray arm, upper spray arm and top nozzle ensures clean dishes
• Intensive lower rack washing with Extra Spray Arm
• Turbidity sensor monitors the soil level of the dishes for superior quality
• Triple filtration system removes the smallest particles for clean water circulation
• Flow-through water heater is concealed to provide a safer alternative to exposed heaters

TURBO FAN DRY

• Fan circulates air for efficient drying performance

QUIET CLEAN™ PERFORMANCE PACKAGE - 42dB

• Three layers of insulation – bitumen, cotton, and full side walls create one of the quietest dishwashers on the market
• Brushless discharge and circulation motor

LOADING

• Industry-leading heavy gauge top and bottom dish baskets hold even the heaviest dishes
• Upper Smart FullSize™ Rack is designed to allow cleaning of cutlery while washing tall items simultaneously in upper rack
• Holds up to 16 international place settings along with silverware and cutlery
• Top rack is 3-positon adjustable with or without dishes for versatile loading
• Telescopic rail provides smooth motion for upper basket
• Adjustable stemware shelves can be used for holding ladles or other small utensils
• Foldable tines provide versatility for the loading of pots, pans, and uniquely sized items in top and bottom racks
• Bottom rack has eight and top rack has six split foldable tines with variable setting from flat to vertical
• Sliding cutlery basket can be moved horizontally to any position

FEATURES

• LCD screen with remaining time indicator
• Touch button direct access control
• Cycle indicator light on floor
• Energy Star Qualified

CYCLES/OPTIONS

• Cycles
  • Pots/Pans Plus – Extra-heavy soil level
  • GlassCare
  • Auto – determines the amount of water and temperature, needed
  • CombiClean – washes delicate items in upper basket and heavier soiled items in lower basket
  • Regular Wash – Normal soil level
  • HourWash
  • Quick Wash – 35 Minutes!
  • Rinse/Hold – Pre-rinse dishes clean
• Options
  • Express Function – Sensor detects rinse aid and automatically sets drying cycle duration
  • Sanitize Function – Raises water temperature in final rinse to meet NSF requirements
  • High Gloss – Provides superior drying performance
  • Intense Wash – Helps wash heavily soiled dishes
  • Delay Start – Allows delayed activation for up to 24 hours

California Prop. 65 WARNING: Cancer and birth defects or other reproductive harm - www.P65Warnings.ca.gov

Panel Door Available in Colors with Model Numbers

Professional

Antique Bronze #PDDP524AN

Blush #PDDP524BH

Cast Black #PDDP524CS

Daffodil #PDDP524DA

Damascus Gray #PDDP524DG

Eucalyptus #PDDP524EU

Golden Hour #PDDP524GH

Ivy #PDDP524IV

Martini #PDDP524MA

Nantucket #PDDP524NA

November Sky #PDDP524NS

Onyx #PDDP524ON

Pure White #PDDP524PW

Slate Blue #PDDP524SB

Spiced Cider #PDDP524SC

Splash #PDDP524SP

Squall #PDDP524SQ

Stainless Steel #PDDP524SS

Valentine #PDDP524VA



RVL

Black Glass#PDDP524VA



Tuscany

Antique Bronze #TVDDP524AN

Blush #TVDDP524BH

Cast Black #TVDDP524CS

Damascus Grey #TVDDP524DG

Eucalyptus #TVDDP524EU

Ivy #TVDDP524IV

November Sky #TVDDP524NS

Slate Blue #TVDDP524SB

Spiced Cider #TVDDP524SC

Splash #TVDDP524SP

Daffodil #TVDDP524DA

Golden Hour #TVDDP524GH

Nantucket #TVDDP524NA

Onyx#TVDDP524ON

Pure White #TVDDP524PW

Squall #TVDDP524SQ

Valentine #TVDDP524VA



Specifications

Key Specs

Product Height

33 9/10 inches

Product Width

23 1/2 inches

Product Depth

22 1/5 inches

Operating Sound Level

42 decibels adjusted

Number Of Racks

3

Tub Finish

Stainless steel

Place Setting Capacity

16

Color Finish

Custom

General

Product Name

24" Top Control Built-In Dishwasher with Stainless Steel Tub

Brand

Viking

Model Number

FDWU524

Color

Custom Panel Ready

Dimension

Product Height

33 9/10 inches

Product Width

23 1/2 inches

Product Depth

22 1/5 inches

Product Weight

97 pounds

Cut-Out Dimensions

Cut-Out Height

34 inches

Cut-Out Width

24 inches

Cut-Out Depth

24 inches

Features

Drying Method

Heated drying

Operating Sound Level

42 decibels adjusted

Delay Start

Yes

Cycle Status Lights

Yes

Cycle Specifications

Number of Cycles

8

Options and Programs

Rinse & Hold, auto, express cycle, Regular, 1 hour, quick 35'

NSF-Certified Sanitization Cycle

Yes

Rack Features

Number Of Racks

3

Upper Rack Features

Adjustable height

Rack Material

Other

Design

Panel Ready

Yes

Dishwasher Type

Built-in dishwashers

Tub Finish

Stainless steel

Control Type

Touchpad

Control Location

Top control

Handle Type

Bar handle

Place Setting Capacity

16

Included

Power Cord Included

Yes

Electrical Specification

Estimated Annual Electricity Use

225 kilowatt hours

Estimated Annual Operating Cost

29 United States dollars

Voltage

120 volts

Wattage

1400 watts

Certifications Listings & Approvals

ENERGY STAR Certified

Yes

Consortium for Energy Efficiency (CEE) Rating

CEE Tier 1
