  • #AZ65H15DBM | 15,000 BTU | 230/208 Volt | GE Zoneline® Heat Pump Unit with Makeup Air
  • #AZ65H15DBM | 15,000 BTU | 230/208 Volt | GE Zoneline® Heat Pump Unit with Makeup Air

#AZ65H15DBM | 15,000 BTU | 230/208 Volt | GE Zoneline® Heat Pump Unit with Makeup Air

Article number: 05365
$1,439.00 $1,299.99 Excl. tax

IN THE BOX

The rating of this product is 0 out of 5

 (0)
In stock (Delivery timeframe:1-4 Days for Clarksville Location)
swap-horizontal Add to compare

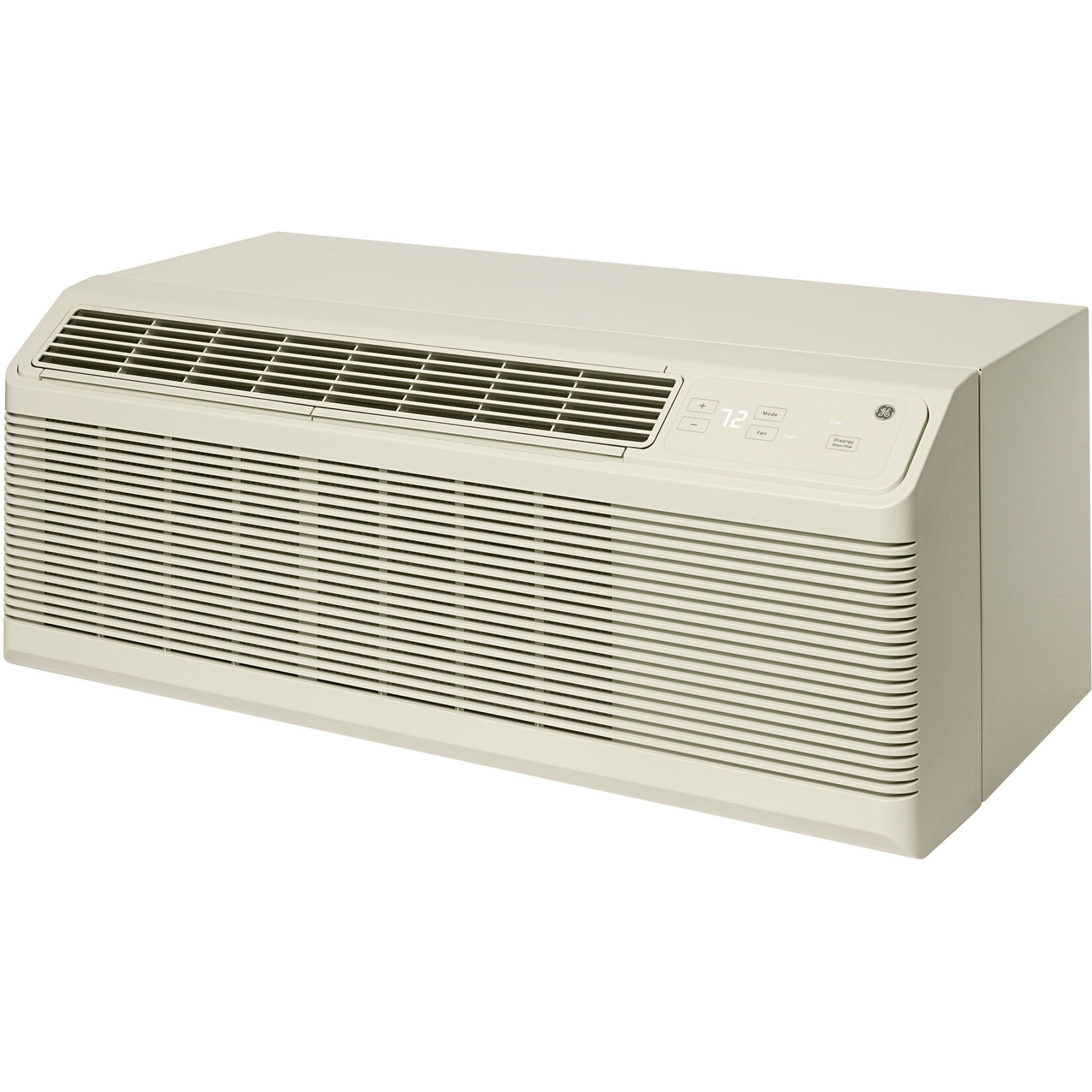

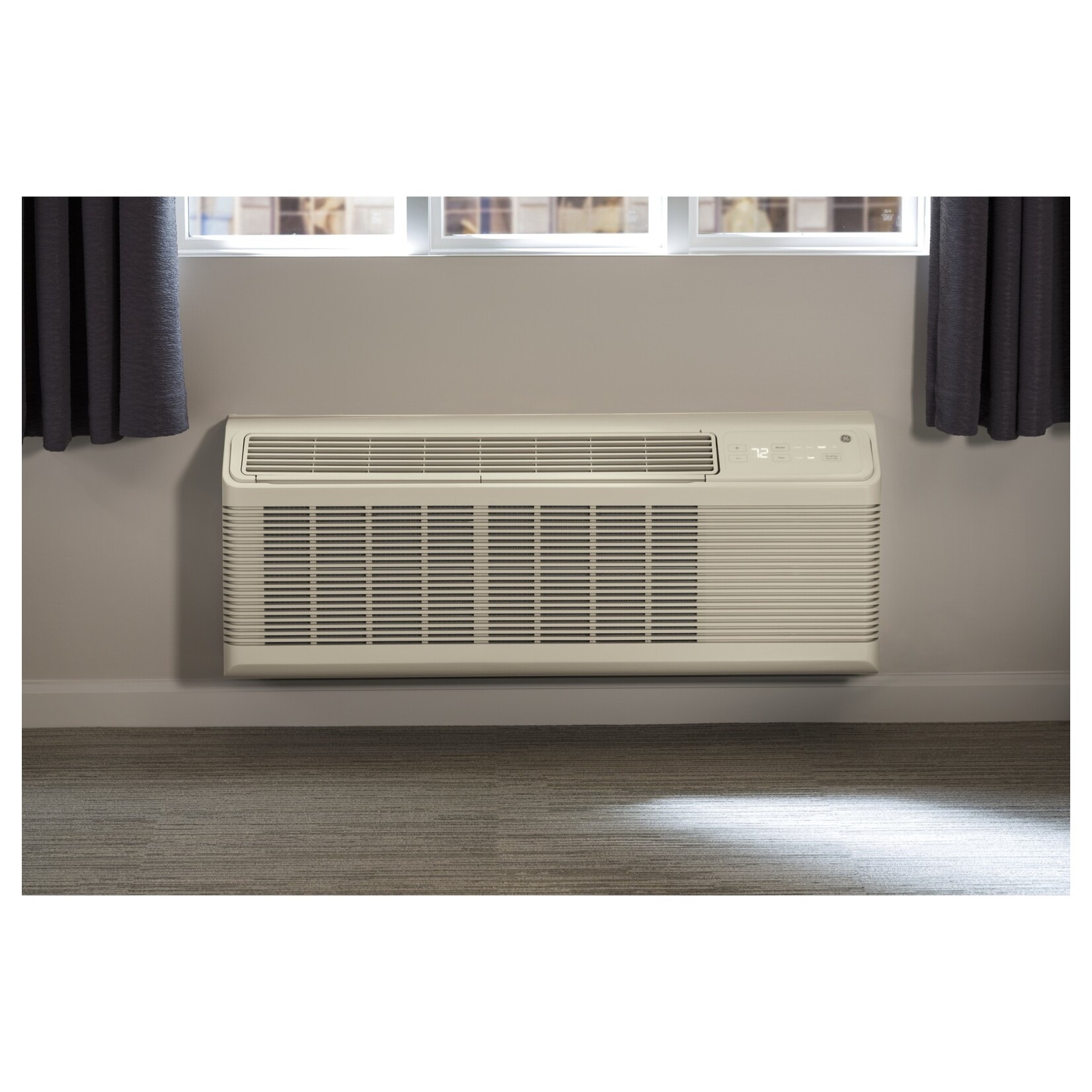

GE Zoneline® Heat Pump Unit with Makeup Air, 230/208 Volt

  • Cooling capacity
  • Energy efficiency
  • Dehumidification
  • Dimensions: 16 H x 42 W x 20 13/16 D

DESCRIPTION:

GE AZ65H15DBM Zoneline Heat Pump PTAC Air Conditioner Features:

- The refrigerant used in this product is not CARB compliant. We are unable to ship this item to the state of California.

- Specialty model with 25-50 CFM makeup air.
- Dehumidifies at a rate of 5-6 pints per 24 hours.
- Efficient heat pump heating.
- Universal electric heating capacity ranges from 2,400 Watts to 4,800 Watts depending on which voltage and power connection kit you select.
- Environmentally friendly R-410A refrigerant.
- Digital controls.
- LED temperature display.
- Easy temperature selection.
- Tactile touch pads.
- Two fan motors.
- Improved quiet sound levels.
- Higher efficiency.
- Electronic temperature limiting.
- Freeze Sentinel protects unoccupied rooms from dbmage by freezing temperatures.
- Heat Sentinel reduces excessive temperatures in unoccupied rooms.
- Makeup air models are not recommended for installation within 2 miles of coastal areas.
- It is strongly recommended to install makeup air with wall thermostats.
- SMC base pan.
- Cooling BTUH (MAX): 14000.
- CFM Indoor Fan High: 370.
- Cooling EER (BTUH / Watt): 10.6/10.6.
- Heating - Reverse Cycle - BTUH: 13500/13400.
- Cooling BTUH (MIN): 14100.

Additional Features
- Sleep Mode.
- Smart Fan Fan Cycle Control.
- Auto Power Recovery.
- Automatic Emergency Heat.
- Automatic Indoor Frost Control.
- Central Desk Control Compatibility.
- Freeze Sentinel.
- Heat Pump with Resistance Heat Backup.
- Heat Pump with Supplemental Resistance Heat.
- Heat Sentinel.
- Proportional - Integral ID Airflow.
- Quick Heat Recovery.
- Random Twist/Length Segment Tangential Blower.
- Remote Thermostat Compatibility.
- Reverse Cycle Defrost.
- Universal Heaters.
- Weather Protected Electrical Components.
- Louver Style: Reversible.
- Control Type: Standard Microcomputer, Tactile touch pad with LED Display.
- Discharge Grille: 2-position.

Fan Speed Selections:
- Hi/Low Cooling.
- Hi/Low Fan Only.
- Hi/Low Heating.

- Sensible Heat Ratio: 65 percent.
- Product Type: Packaged Terminal Air Conditioners (PTAC).

Filter Type:
- Rigid Frame.
- Slide-Out.

- Manual Vent Control: Hidden.
- Chassis Type: Slide-In.
- Fan Motor 2.
- Temperature Limiting: Electronic 7-Step.
- Fan Speed Control: Yes.
- Temperature Range 60 - 85 F.
- Heat - Cool: Yes.
- Electronic Micro Computer Control: Yes.
- Fan Cycle Switch: Yes.
- Rotary Compressor: Yes.
- Vent Control: 3-position.

Venting Features
- Concealed Manual Vent Control.
- Outdoor Vent Control - 3 Positions.
- Vent Air Filter.

- Heating System: Heat Pump.
- Color Appearance: Gray.
- Overall Width: 42.
- Approximate Shipping Weight: 110.00.
- Overall Height: 16.
- Overall Depth: 20 13/16.
- Net Weight: 110.00.
- Cooling - Amperes: L.R. 31.
- Power Factor: 91/92.
- Heating - Reverse Cycle - Watts: 1165/1120.
- Cooling - Amperes: 6.3/6.8.
- Cooling - Watts: 1360/1335..
- Heating - Reverse Cycle - Amps: 5.8/6.3.
- Voltage (MIN): 208.
- Heating - Reverse Cycle - COP: 3.3/3.3.
- Voltage (MAX) 230.
- Warranty Notes: See written warranty for full details.

Labor Warranty:
- Limited 1-year entire appliance.
- Limited 5-year sealed refrigerating system.

Parts Warranty:
- Limited 1-year entire appliance.
- Limited 5-year sealed refrigerating system.

Claims And Certifications:
- CUL.
- UL.
- AHRI.
- NRCAN.
- California Prop 65.
- MADE IN AMERICA: 70 to 90 percent U.S. Content.
